Products:

Receipt Printers:

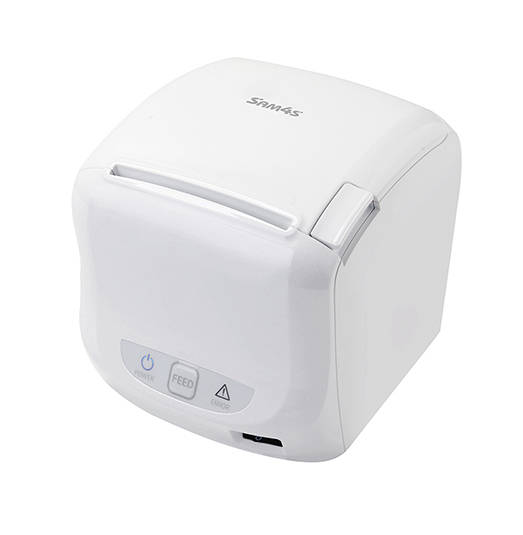

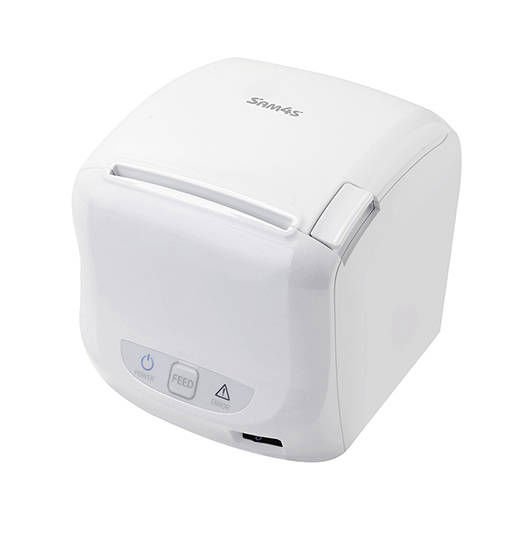

Sam4s Giant-100:

Target Market

Best Features

Basic Specifications

Downloads

Compact POS Printer



GIANT-100 is the new 3" Printer. Distinctive in its very small size, the GIANT-100 is as small or smaller than 2" Printers. Nevertheless it performs equal to or better than competing 3" printers. The GIANT-100 is a signpost model, pointing the direction to which receipt printers will evolve in the future.

- 250mm/sec Printing Speed



- Compact Size/Small Footprint



- Supporting USB+Serial, USB+WiFi and USB+Serial+Ethernet(3-Combo) Interface



- Tool-less Design

Printing Method:

Thermal Line Printing



Resolution:

180 DPI



Printing Speed:

Mono Paper 80mm = Max. 250 mm/sec (59 Lines/sec)

Mono Paper 58mm = 150 mm/sec

Two Color Paper = 100 mm/sec



Paper:

Loading = Drop-In Type

Width = Max. 80.0mm / 58.0mm

Diameter = Max. ?? 83.0 mm



Reliability:

Mechanism (MCBF) = 70,000,000 Line

TPH = 1 x 10^8 Pulses / 150Km

Auto Cutter = 1,500,000 Cut



Drawer Port:

2 ports (+24V)



Barcode:

UPC-A, UPC-E, EAN8, EAN13, Code 39, Code 93,

Code 128, ITF, CODABAR, PDF417, QRCode



Driver:

WEPOS, POSReady2009, Windows XP Pro,

Windows Vist, Windows 7 Pro, POSReady 7,

Windows 8 Pro, Industry 8, OPOS, JPOS, Linux

Cups, Max(OSX10.8), Android SDK



Interface:

USB + Serial(25Pin), USB + Serial(9Pin), USB +

WiFi, USB + Serial+Ethernet 3-Combo



Dimension (with Foot Rubber):

131(W) x 155(D) x 133(H) mm



Weight(Net):

0.9 Kg



Color:

Black, White



Emulation:

EPSON, STAR



Option:

Loading = No

Paper Near End Sensor = Yes

Kitchen Bell =Yes

Wall Mount Kit = Yes

Splash Cover = Yes

Paper Separator (58mm) = Default

Manuals:



GIANT-100 USER MANUAL

DOWNLOAD





Softwares:



GIANT-100 WINDOWS DRIVERS VERSION - 1.9.5

DOWNLOAD

GIANT-100 OPOS DRIVER VERSION - 1.20

DOWNLOAD

GIANT-100 TOOL VERSION - 1.0

DOWNLOAD





Others:



ADOBE ACROBAT READER VERSION - 5.0

DOWNLOAD

USB TO SERIAL DRIVERS VERSION - 1.5.0

DOWNLOAD

WINZIP VERSION - 8.1

DOWNLOAD
