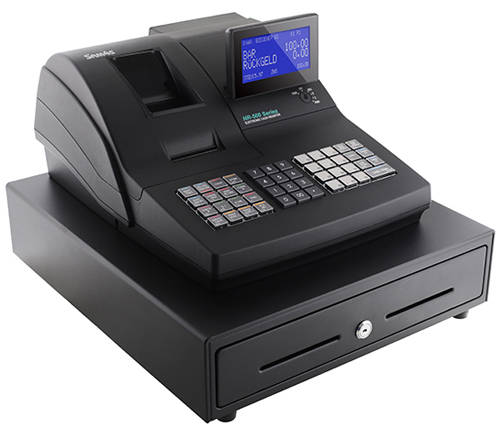

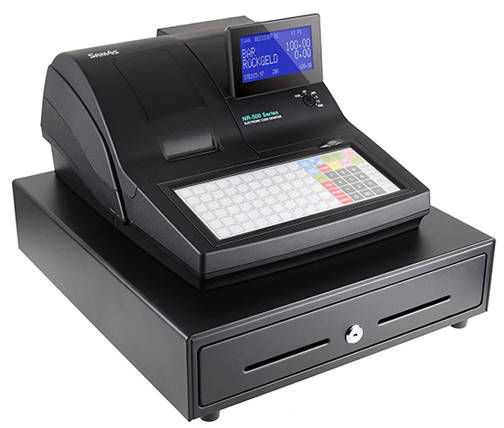

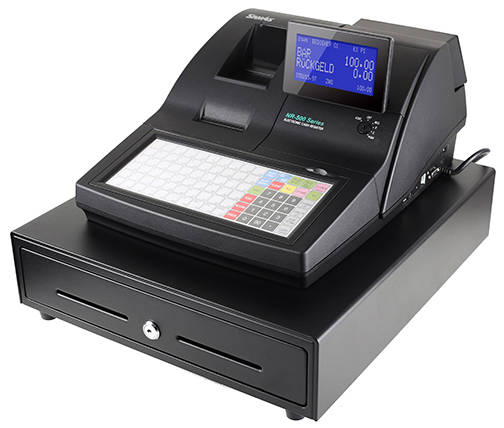

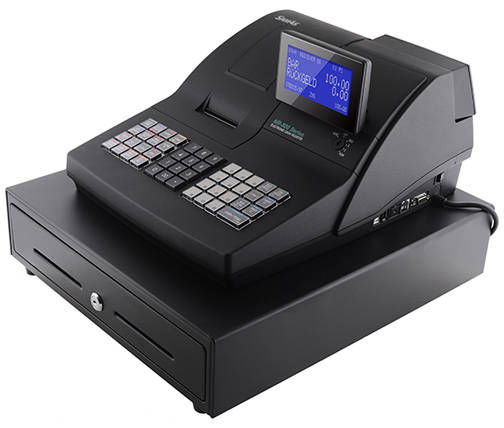

Sam4s NR-5xx Series

Gallery

Target Market


NR-5xx series is reliable easy to use Electronic Cash Register, features Wide Multi Line Graphic Display, 16 Char. x 2 Line LCD Rear Display, Easy Data Back up, Restore and Report, Electronic Journal Printer.

Best Features


The NR-5xx Series features:
- Wide Multi Line Graphic Display, 16 Char. x 2 Line LCD Rear Display,
- Support Non-Alphabetic Language.
- 2 types keyboard available: 90 Flat / 48 Raised.
- 1-station / 2-station Thermal Printer.
- 1000-8000 PLUs and 99 Groups.
- Tax Calculation.
- Euro Currency Conversion.
- Electronic Journal.
- Daily or Periodic Reporting.
- Clerk Management / Table Management.
- Graphic Logo Print.
- F/W Update with PC / SD Card.
- PC Utility Ethernet / USB / Serial.
- 4 Bill & 8 Coin Slots.
- Mid range ECR for Non-Fiscal Market.

Basic Specifications


PRINTER:

NR-510/510R:
TYPE = 1 STATION THERMAL
SPEED = 70mm/sec (18 lines/sec)
PAPER WIDTH = 57.5mm (1EA)
PAPER END SENSOR = YES

NR-520/520R:
TYPE = 2 STATION THERMAL
SPEED = 70mm/sec (18 lines/sec)
PAPER WIDTH = 57.5mm (2EA)
PAPER END SENSOR = YES

KEYBOARD:
FLAT = NR-510/NR-520 : 90 Flat Keys
RAISED = NR-510R/NR-520R : 48 Raised Keys

DISPLAY:
OPERATOR = 192 x 64 Graphic LCD
CUSTOMER = 16Character x 2Lines LCD

INTERFACE:
SERIAL (RS-232C) = 3 Ports (RJ45 x 1, D/SUB 9Pin x 1, Extendable x 1)
USB = Host: 1 Port (Mass Storage/Scanner) Device: 1 Port (PC) (Host / Device Selectable)
NETWORK = TCP/IP (10/100 Mbps)
SD CARD = SDHC Compatible
DRAWER PORT = 1 Port

APPEARANCE:
DIMENSION: (WxDxH mm) = 400(W)x450(L)x266(H)
WEIGHT: Kg = Approx. 13kg
POWER = AC 100~240V/50~60Hz

MEMORY:
Program = 2MByte FLASH (CPU Internal)
Data = 4Mbit SRAM
Ext. (Opt.) = 4Mbit SRAM (Total 8Mbit)
Data Storage = 60 Days

PERIPHERAL:
Operator Key, Scanner(Serial/USB), Remote Printer, Slip Printer, kitchen Printer, Scale, Pole Display, EFT POS Terminal.

ENVIRONMENT CONDITION:
Temperature = -5 ~ 45°C (23~113℉)
Humidity = 30~80%RH

SOFTWARE:
Keyboard Departments = 12 / 60
PLU's = 1000(Max.8000)
Group = 20(Max.99)
Clerk = 10(Max.99)
TAX = VAT, ADD ON, TAX TABLE
Electronic Journal = YES (SD Card)
Euro Currency Conversion = YES
Graphics Logo = YES
Daily and Periodic Reporting = YES
Table Management = YES
PLU Descr1ptors size = 24
F/W Update = PC/SD Card
PC Utility = Ethernet/Serial/USB
