Sam4s SPS-2000:

Target Market

Best Features

Hardware Spec's

Software Spec's

Downloads

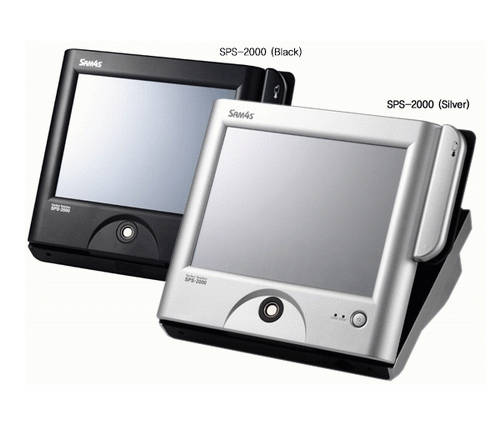

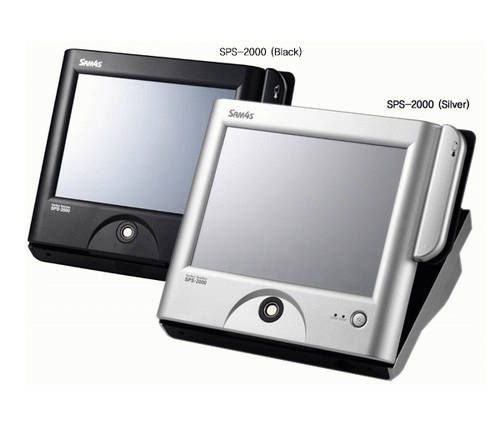

The SPS-2000 delivers features and high performance from an attractive, stable touch screen solution.



The elegant appearance and high performance of the SPS-2000 will satisfy the high demands of today's customers. With convenient Retail and Hospitality features, the SPS-2000 is the perfect choice for many different applications, while remaining flexible and easy to use.

High Performance Memory:

The SPS-2000 comes with 64MB standard SCRAM and 64MB NAND on-board flash memory. Memory can be flexibly allocated to support large menus, check files, custom reports and employee time/attendance files.



12.1 XGA Touch Screen TFT LCD Monitor:

The SPS-2000 provides more vivid color with high resolution (1024*768). The super-bright TFT LCD touch screen can be viewed from almost any angle and the monitor angle is adjustable from 22 to 77.



Powerful Interface & Flexible Peripherals:

The SPS-2000 offers connectivity capabilities with 6 serial ports and 2 USB interfaces.



Unique and Elegant Style:

The compact and elegant SPS-2000 is an attractive addition to any business environment. With its small footprint and no single point of failure reliability, the SPS-2000 is a smart choice.

PROCESSOR(CPU):

SEC S3C2410A (ARM 920)

203 Mhz (Low power consumption/Fan)



MEMORY:

SDRAM = 512Mbit(64MB) on B'D (OS & App PGM)

NAND FLASH = 512Mbit(64MB) on B'D

SRAM = 32Mbit(4MB) (Data Backup ;90 Days)

Video memory = Shared System Memory(SDRAM)

Cache memory = 32KB in CPU



I/O PORTS:

Serial = 6EA x serial port

(COM #1,2: DSUB9P, COM #3~6: RJ-45)

Parallel = 1EA parallel port

Ethernet/LAN = 1EA x RJ-45 LAN Port

CIRRUS CS8900A 10 Base-T Ethernet PHY on B'D

VGA = 12.1" TFT-LCD XGA(1024 x 768) 262,144 Color(18Bit)

Scale up with RTD2522 TMDS -> LVDS Convt with SIII 64

USB = 2EA x USB 1.1 port

Sound = NO

PCMCIA = NO

KBD = 1EA x PS/2 port

Mouse = 1EA x PS/2 port

Drawer = 1EA x RJ-11 port (Use Two Drawer)

Option = (FACTORY OPTION) Dallas Key - 5 / 10 Keys

MSR = (FACTORY OPTION) 1/2 and 2/3 Track Card Reader



DISPLAY:

Operator display = 12.1" Touch Panel TFT-LCD

Adjustable angle gauge = 22¡Æ ~ 77¡Æ

Customer display = (FACTORY OPTION) Rear VFD Display 1-line, 10-Digit



SAFETY STANDARD:

EMC (EMI + EMS) = CE, FCC

Safety = TUV, UL/CSA



DIMENSION(WxDxH):

324 x 358 x 184~332 mm



WEIGHT(kg):

5.5Kg



BODY COLOR:

SILVER / DARK GRAY



POWER SUPPLY:

Power Voltage = AC 100-240V 50/60Hz 0.9A

Power Plug Type = USA / EUROPE / UK / AUSTRALIA

PLU = Max 40,000

Group = 99

PLU Status Group = Max 9,999

Key Link = Max 200

Price Level = 20

Stock management = YES

Ingredient = YES

Condiment Item = YES

Manager control = YES

Link PLU = YES

Descriptor = 16

Clerk = Max.999

Buffer Receipt = YES

Training Mode = YES

Tax = 6

Discount/Surcharge = 10

Tendering = Cash / Check / Misc1 ~ 16

Currency Conversion = 5

Decimal Point = 0~3 selectable

Pre/Post Amble = 5 Pre-amble, 5 Post-amble

Add Check = YES

Table Management = YES

Post Tendering = YES

Eat-In, Take-Out, Drive-Thru = YES

Receipt ON/Off = YES

Key Assignment = YES

Clerk Time IO = YES

Declaration = YES

Reports = YES

Opening system = Embedded Linux

Manuals:



SPS-2000 PRODUCT GUIDE (PRESENTATION)





SPS-2000 PROGRAMMING & OPERATOR MANUAL





SPS-2000 QUICK GUIDE





SPS-2000 MANUAL JAKE





SPS-2000 UPDATE INSTRUCTION





SPS-2000 TFTP INSTRUCTION





LAN/ETHERNET CABLE DIAGRAM





SPS-2000 IMAGE TOPIC





SPS-2000 STANDARD COLOUR TABLE IMAGES





SPS-2000 CUSTOM COLOUR TABLE IMAGES





SPS-2000 SAMPLE IMAGES





SPS-2000 PLU COST PRICE FEATURE





SPS-2000 MEAL ORDER FEATURE





SPS-2000 BARCODE PRINTING FEATURE





SPS-2000 DEPOSIT FUNCTION





SPS-2000 REMOTE DRAWER FEATURE





OPENING CHECK ACCOUNT USING MCR





SPS-2000 REPORT KEY FUNCTION





SPS-2000 SIMPLE IRC USING WIRELESS NETWORK





SPS-2000 PROMOTION TABLE TUTORIAL





SPS-2000 TIME & ATTENDANCE PROCEDURE







Softwares:



SPS-2000 PC UTILITY VERSION - 2.25E





JOURNAL MONITOR VERSION - 1.01





SPS-2000 APP. & IMAGE UPDATER VERSION - 1.0





SPS-2000 REPORT VIEWER VERSION - 2.13.2





SPS-2000 COMPLETE UPDATE VERSION - 1.01F





SPS-2000 BOOTROM VERSION - 1.24





SPS-2000 KERNAL & RAMDISK (RAMDISK FILE) VERSION - 1.07





SPS-2000 KERNAL & RAMDISK (Z-IMAGE FILE) VERSION - 1.31





SPS-2000 KERNAL & RAMDISK (NANDBOOT FILE) VERSION - 1.10





SPS-2000 KERNAL & RAMDISK (XLIB FILE) VERSION - 1.12





SPS-2000 MICOM VERSION - 1.07





SOLAR WIND TFTP SERVER VERSION - 6.0





GUILD FTPD VERSION - 0.99





TFTPD32 VERSION - 3.0







Others:



ADOBE ACROBAT READER VERSION - 5.0





USB TO SERIAL DRIVERS VERSION - 1.5.0





WINZIP VERSION - 8.1
