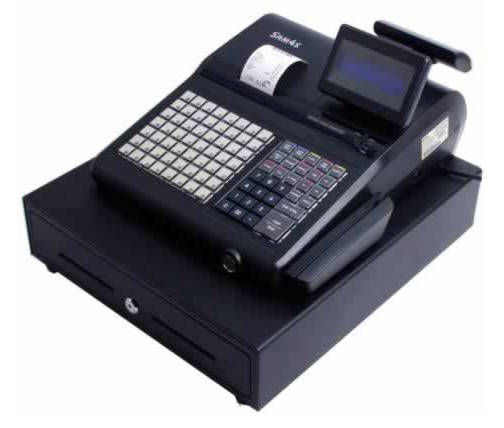

Sam4s SPS-3xx Series

Gallery

Target Market

The SPS-3xx Series provide Solution for Retail/Hospitality Market.
- Elegant, compact design.
- Reliable hardware and proven software.
- Easily adapts to many retail and food service environments.

Best Features

The SPS-3xx Series features an elegant design that will complementary any retail environment. Built with commercial grade components, the SPS-3xx is easy to configure and easy to use.
  - 192 X 64 Graphic LCD with 6-Colour backlights.
- 9-Digits colorful rear Display.
- 2 types thermal printer: 58mm 1-station/58mm 2-station.
- 3 types keyboard: 150 Flat/91 Raised/ 63 Raised.
- Max. 4 ports*RS-232 interface and optional USB serial port.
- 10/100mbps Ethernet (Max. 16 unit).
- Max 20,000 PLU, 99 Groups, 99 Clerk.
- Daily and periodic reporting, Report consolidation.
- Table management function.
- Sharing Kitchen Printer.
- Support auto-cutter, MSR, SD card slot, Dallas/Addmat key.

Basic Specifications

PRINTER:
SPS-320/325:
TYPE = 1 STATION THERMAL
SPEED = 22 LPS (85mm/sec)
PAPER WIDTH = 58 mm
AUTO-CUTTER = (OPTIONAL YES)
TAKEUP SPOOL = (OPTIONAL YES)

SPS-340/345:
TYPE = 2 STATION THERMAL
SPEED = 22 LPS (85mm/sec)
PAPER WIDTH = 58 mm
AUTO-CUTTER = (OPTIONAL YES)
TAKEUP SPOOL = YES

KEYBOARD:
FLAT = 150 Keys
RAISED = 91/63 Keys

DISPLAY:
OPERATOR = 192 X 64 Graphic LCD with 6-Colour backlights
CUSTOMER = 9-Digit LED

  INTERFACE:
SERIAL (RS-232C) = 2 Ports (Optional Max 4 ports)
USB = (Optional 1 port-Device only)
NETWORK = 10/100mbps Ethernet (Max. 16)
DRAWER = 2 Ports

  APPEARANCE:
DIMENSION: (WxDxH mm) = 400 x 450 x 300 (WITH DRAWER)
SPS-320/325 WEIGHT: Kg = 11.2
SPS-340/345 WEIGHT: Kg = 11.6

POWER:
REQUIREMENT = AC 120V/60Hz, 230V/50Hz
CONSUMPTION = 19W (REG)

OPTION:
MSR, SD card slot, Dallas/Addmat key,
INTERFACE CARD (2-PORTS SERIAL OR 1-PORT USB & 1-PORT SERIAL)

  SOFTWARE:
PLU= MAX 20,000
GROUPS= MAX. 99
CLERKS= MAX. 99
TAX/VAT RATE = 4
DAILY & PERIODIC REPORTING = YES
TABLE MANAGMENT FUNCTION = YES
