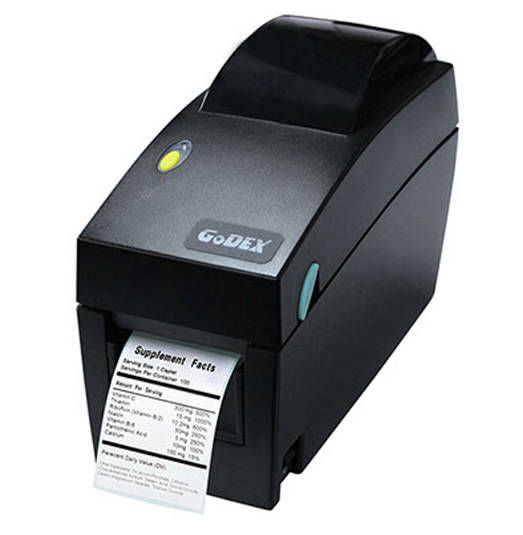

Godex DT-2

Gallery

Target Market


Simple, compact and reliable barcode printer

Simple, very compact and reliable barcode printer. Perfect for printing retail labels and tags, hospital and recreation wrist bands, plus other small, temporary labeling applications.

Best Features


- Simple and economical 2.5” direct thermal printer
- Small space-saving design with wall mounted feature
- Standard USB 2.0, serial port and Ethernet connections
- Auto language emulations: EZPL, GEPL and GZPL
- Free GoLabel / QLabel software with database function makes it easy to design
- Options include: label dispenser and cutter

Basic Specifications


Printing Method:
Direct Thermal

Resolution:
203 dpi (8 dots/mm)

Print Speed:
4 IPS (102 mm/s)

Print Width:
2.12” (54 mm)

Print Length:
Min. 0.16” (4 mm)**; Max. 68” (1727 mm)

Processor:
32 Bit RISC CPU


Memory:
4MB Flash (2MB for user storage) / 16MB SDRAM

Sensor Type:
Fixed transmissive sensor, central aligned, adjustable reflective sensor

Media:
Types: Continuous form, gap labels, black mark sensing, and punched hole;
label length set by auto sensing or programming

Width: 0.6” (15 mm) Min. - 2.36” (60 mm) Max.
Thickness: 0.0024” (0.06 mm) Min. - 0.008” (0.20 mm) Max.
Label roll diameter: Max. 5” (127 mm)
Core diameter: 1”, 1.5” (25.4 mm, 38.1 mm)

Printer Language:
EZPL, GEPL, GZPL auto switch

Software Label design software:
QLabel-IV, GoLabel (for EZPL only)

Driver:

Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Windows 10
DLL: Win CE , .NET , Windows Mobile,  Android

Resident Fonts:
Bitmap fonts 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
TTF fonts:CG Triumvirate™ (Bold / Italic / Underline). 0°, 90°, 180°, 270° rotatable

Download Fonts:
Bitmap fonts: 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian fonts: 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001)90∘,180∘,270∘, rotatable and 8 times expandable in horizontal and vertical directions
TTF fonts: 90°, 180°, 270° rotatable

Barcodes:

1-D Bar codes:
Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock

2-D Bar codes:
PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417,
Micro QR code and Aztec code

Code Pages:
CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257
Unicode UTF8、UTF16BE、UTF16LE

Graphics:
Resident graphic file types are BMP and PCX, other graphic formats
 are downloadable from the software

Interfaces:
USB port
Serial port: RS-232 (DB-9)
Ethernet port

Control Panel:
One Tri-color LED: Power (Green, Orange and Red)
Function Key: FEED
Real Time Clock: Standard

Power:
Auto Switching 100-240VAC, 50-60Hz

Environment:
Operation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 122°F (-20°C to 50°C)

Humidity:

Operation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing.

Agency Approvals:
CE(EMC), FCC Class A, CB, CCC

Dimension:
Length: 8.58” (218 mm)
Height: 6.77” (172 mm)
Width: 3.94” (100 mm)
Weight: 2.65 lbs (1.2Kg) ,excluding consumables

Options:
Cutter Module
Label Dispenser
External label roll holder for 10” (250 mm) O.D. label rolls
External label rewinder

Note:
* Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners.

** Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height and maximum print speed capability.
