Zmin X-1

Gallery

Target Market

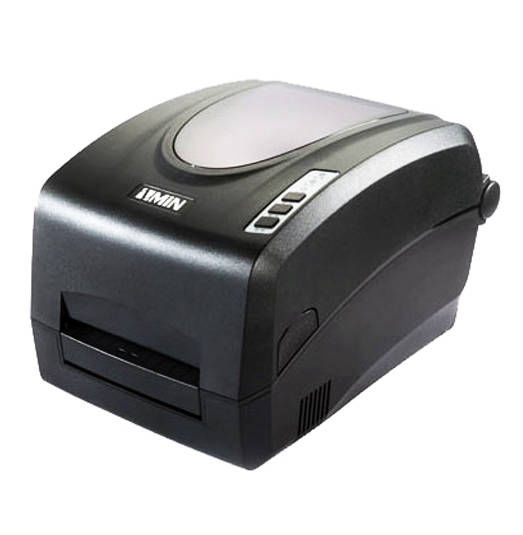

Powerful Full, Convenient, Small-footprint Barcode Label Printer. X1's resolution is 203DPI,X1i's resolution is 300DPI.

Best Features


The ZMIN X series barcode label printer will bring a new experience for you !

This printer delivers an affordable solution so that you can easy to use the variety size of ribbon and label. It support upto 300 miller ribbon and 5 inch label roll, all of this means fewer consumable changes. The print speed is reached to 6 inch/sec for 300DPI, so it provides quickly and efficiently printing, meet your requirements of maximizing production and minimizing wait time.

Meanwhile, excellent appearance make it more attractive.

Basic Specifications


Printing Method:
Direct thermal & Thermal transfer

Resolution:
203 DPI (8dots/mm)

Maximum print speed:
8 IPS (203.2mm/s)

 Maximum print width:
4.09″ (104mm)

Maximum print length:
157.5″ (4000mm)


Memory:
8 MB Flash ROM, 16 MB SDRAM

Media:
Roll-feed, die-cut, continuous, fan-fold, tags, tickets in plain paper or thermal paper
Width:4.5″ (114mm) max.,0.8″ (20mm) min.
Supply roll: OD 5″ (127mm) max., ID 1″ (25.4mm) min.
Thickness: 0.08~0.20mm (0.003″~0.0078″), including liner

Ribbon:
Wax, Wax/Resin, Resin
Ribbon roll: OD 2.75″ (70mm) max. with ID 1″ (25.4mm) core or ID 0.5″ (12.7mm) core
Max width: 110mm; Max length: 300M

Media sensor:
Adjustable reflective & Transmissive

Bar Code Types:
1D Barcode : Code 39, Code 93, Code 128, Codabar,
EAN-8/13/128, Interleave 2 of 5, UCC-128,
UPC A/E 2 and 5 add-on, etc.
2D Barcode : Data Matrix, MaxiCode, PDF417,QR, etc.

Interfaces:
RS-232 serial, USB

Power rating:
24 VDC, 2.5 A

Weight:
 2.62KGS

Dimensions:
W208 x D310 x H195 mm

Operation environment:
Temperature: 32° F ~ +104° F (0° C ~ 40° C)
Relative humidity: 5% - 85% non condensing

Storage environment:
Temperature: -40° F ~ +140° F (-40° C ~ 60° C)
Relative humidity: 5% - 85% non condensing

Optional items:
Peeler kit, Internal 100/10 M Ethernet Interface card
