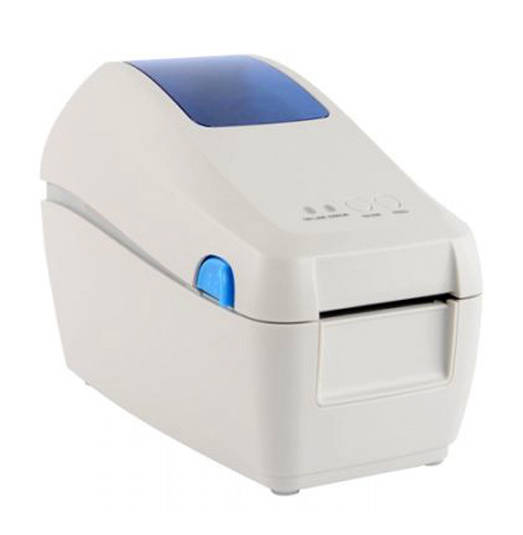

Gprinter GP-3200LT

Gallery

Target Market


Simple, compact and reliable barcode printer

2 inch 203 DPI
Direct thermal label printer

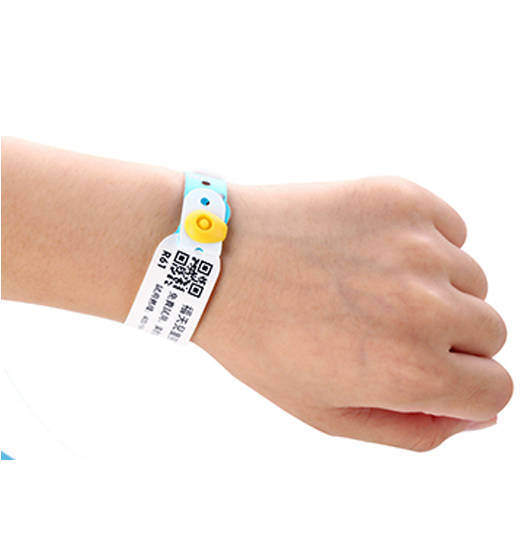

Simple, very compact and reliable barcode printer. Perfect for printing retail labels and tags, hospital and recreation wrist bands, plus other small, temporary labeling applications.

Best Features


Support Real - time monitoring function, easy to call customer.
Service promptly.
2-8 inch/s high speed printing.
Support fan-fold paper and roll paper.
Support paper width from 20mm to 60mm, easy loading.
Support paper automatic calibration function.
Temperature auto adaptation and control.
Support black mark detection function.

Basic Specifications


Print:
Print method: Direct thermal
Resolution: 203DPI
Print width: 60mm
Print speed: 8inch/s (Max); 2inch/s (Normal)

Memory:
DRAM: 8M FLASH: 4M

Print head temperature detect:
 thermal sensitive resistance

Print head position detection:
 Micro switch

Paper sensor:
Photo electricity sensor

Black mark detection:
reflection sensor

Interface:
USB

Barcode/Character/Image:

Code page 1D Barcode:
CODE128, EAN128 ITF, CODE39, CODE93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, POSTNET, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPC-E+5, CPOST, MSI, MSIC, PLESSEY, ITF14, EAN14

2D Barcode:
QRCODE

Font:
Font 0 - Font 8

Character enlargement/rotation:
1-10 times enlargement in horizontal andvertical directions; Rotation printing (0°,90°,270°,360°)

Image:
Single color PCX, BMP image file, which can be downloaded into FLASH and DRAM

Media:

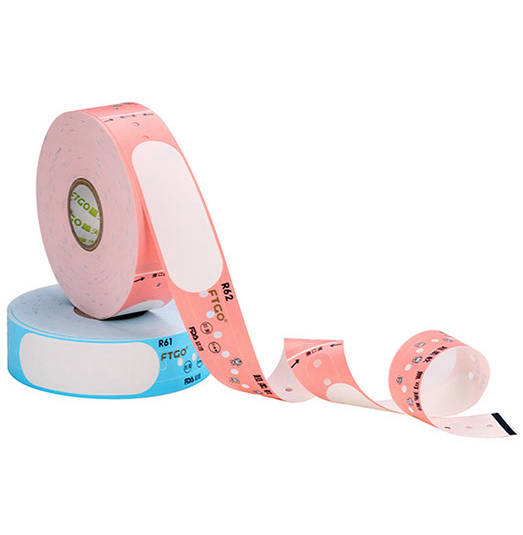

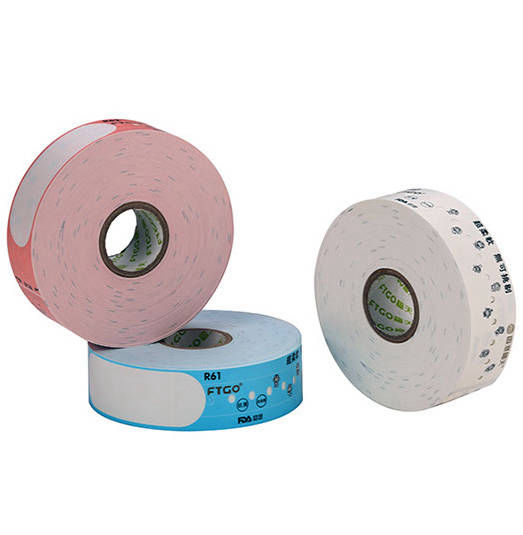

Paper type: Direct thermal wristband; thermal label roll;
Paper width: 20mm-60mm
Paper diameter: Max.100mm Min.25mm
Paper out method: Tear off

Power:
Input: 24VDC,2A

Dimension:
D*W*H 243*129*166(mm)
