Barcode Printers:

Gprinter GP-1125T: (Altron/Argox)

   GP-1125Z: (Zebra)

Target Market

Best Features

Basic Specifications

Downloads

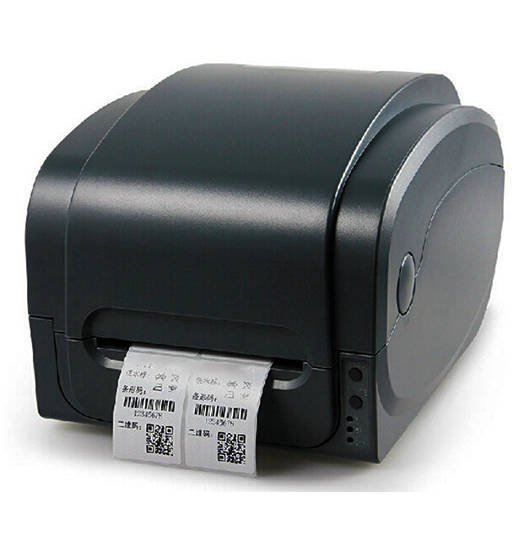

Powerful Full, Convenient, Small-footprint Barcode Label Printer. GP-1125 resolution is 203DPI.



There is 2 different models:

GP-1125T which support Altron or Argox Emulation.

GP-1125Z which support Zebra Emulation.

- 203 dpi (8 dots/mm) resolutions; Ultra high print speed 5ips(127mm/sec).

- Support Direct Thermal & Thermal Transfer two modes.

- 4 interface designed for multiple requirements.

- 120mm wide paper exit for option more wide label rolls.

- External paper holder are optional for Φ8.4“ industral-grade large roll.

- Supports 300 meter ribbon

Model: GP-1125T/GP-1125Z



Dimontion: 210(W)×180(H)×285(L)

Weight: 2.09KG

Power supply:

Input: AC 110-240V

Output: DC 24V 2.5A,60W

(built-in power adapter)

Environment:

Work environment:temperature 5~40℃ (41~104℉),humidity 25~85%

Storage:temperature-40~60℃ (-40~140℉),humidity  10~90%

Interface: Serial+USB+Parallel+Ethernet



Print specification:



Dot density: 203dots/inch(8dots/mm)

Print method: 203dots/inch(8dots/mm)

Print method: Ribbon/Thermal

Dot size(W×L): 0.125×0.125 mm (1 mm = 8 dots)

Print speed(inch/s): 2~5 inch/s

Maximum print width: 108 mm(4.25")

Maximum print length: 2286 mm(90")

Pulse excitation: 1*108 pulse

Thermal film(reliability): 50KM



Ribbon specification:



Ribbon diameter: Max. 67 mm

Ribbon length: 300m

Ribbon axis size: 1 inch (25.4 mm)

Ribbon width: Max. 110 mm Min. 30 mm

Ribbon winding method: outward winding



Paper specification:



Model: GP-1125T/GP-1125Z

Paper roll diameter(Max.): 127 mm(5")OD

Paper type: Continuous paper , paper with interspaces , folding paper ,black mark paper

Paper rolling up method: Printing side outward rolling / inward rolling

Paper width: Max.120 mm(4.72")

(upper & bottom paper): Min.20 mm(0.78")

The thickness of the paper: Max.0.254 mm(10 mil)

(upper & bottom paper): Min.0.06 mm(2.36 mil)

Paper roll axis size: 25.4 mm~38 mm(1"~1.5")

Label length: 10~2286 mm(0.39"~90")

Remark:  If label length less than 25.4mm(1 inch), label paper with perforations are recommended, labels can be torn off easily.

Gap size: Min.2 mm(0.09")



Software:



Editing Software: Nicelabel  SE

Driver: Windows 2000、XP、Vista、Windows 7/8/8.1/10、Windows Server 2003 & 2008

Manuals:



GP-1125 USER MANUAL

DOWNLOAD

GP-1125T OPERATION GUIDE

DOWNLOAD

T-SERIES BARCODE PRINTERS PROGRAMMING MANUAL

DOWNLOAD

Z-SERIES BARCODE PRINTERS PROGRAMMING MANUAL

DOWNLOAD



Softwares:



GPRINTER GP-1125 WINDOWS DRIVER
DOWNLOAD

GPRINTER NICE LABEL SOFTWARE 2017

DOWNLOAD

GPRINTER ETHERNET CONFIG TOOL

DOWNLOAD



Others:



ADOBE ACROBAT READER VERSION - 5.0

DOWNLOAD

USB TO SERIAL DRIVERS VERSION - 1.5.0

DOWNLOAD

WINZIP VERSION - 8.1

DOWNLOAD
